Stopping a tractor-trailer can take hundreds of feet. The Texas CDL handbook teaches a 55 mph air-brake example that runs past 450 feet on dry pavement with brakes in good condition. That is a rounded teaching example. It is not a measurement of the truck involved in your crash, not a legal following-gap rule, and not an upper or lower bound for every crash.
At Texas Truck Accident Lawyer, we work from what the evidence shows: the speed before impact, the room the operator actually had, when the hazard could first be seen, the condition of the brakes, and the road and traffic around both vehicles. A long stopping distance helps explain a crash. On its own it decides nothing about causation or fault. Ask us for a free case review and tell us what happened.
The four stages
One 55 mph teaching example, broken into four stages
A hazard is seen. Four separate things happen before a tractor-trailer is stopped, and each one uses ground. The bar runs left to right in proportion to the Texas CDL handbook's rounded figures for a 55 mph stop on dry pavement with brakes in good condition.
- Perception, 142 ft. Ground covered from seeing a hazard to recognizing it.
- Reaction, 61 ft. Ground covered from recognizing the hazard to pressing the brake pedal.
- Air-brake lag, 32 ft. Ground covered after the pedal is pressed and before the brakes take hold.
- Braking, 216 ft. Ground covered once the brakes are working, until the vehicle is stopped.
Highlight one stage in the bar
1. Perception: 142 feet while recognizing the hazard
What the stage covers. The handbook's rounded figure for the ground covered from the time the operator sees a hazard until the brain recognizes it: 142 feet in its 55 mph teaching example.
What it leaves open. It is a teaching figure, not a measurement of any particular person. When a hazard first became visible, and from how far back, are questions for the evidence in a case.
2. Reaction: 61 more feet before the pedal moves
What the stage covers. After recognizing the hazard, the operator still has to press the brake pedal. The handbook puts that travel at 61 feet in its 55 mph example. The running total of its rounded figures is now 203 feet.
What it leaves open. Alertness, distraction and the circumstances can affect the response. None is measured by this bar or assumed by us.
3. Air-brake lag: about 32 feet the pedal does not buy back
What the stage covers. Air has to move through the system before the brakes apply. Section 5.4.4 gives roughly 32 additional feet in its 55 mph example and puts the total for an air-braked vehicle at over 450 feet.
What it leaves open. We give no time figure for this stage. The handbook's time passages and its distance passages do not support converting one into the other with precision, so we do not.
4. Braking: 216 feet with the brakes doing their work
What the stage covers. The rounded braking distance in the handbook example: 216 feet at 55 mph on dry pavement with brakes in good condition. This stage covers travel while braking slows the vehicle to a stop.
What it leaves open. Traction, slope, brake condition, tires and load move this figure in both directions. Nothing here converts to another speed, to rain or to a particular tractor and trailer.
All four explanations stay on the page whether or not anything is highlighted. The bar explains where the ground goes. It does not tell anyone who was responsible for a crash.
The four stages come from the Texas Commercial Motor Vehicle Drivers Handbook, sections 2.6.1 and 5.4.4. Section 2.6.1 sets out a 55 mph example on dry pavement with good brakes and rounds it to 142 feet of perception distance, 61 feet of reaction distance and 216 feet of braking distance, a total of 419 feet. Section 5.4.4 adds roughly 32 feet of air-brake lag and puts the total for an air-braked vehicle at more than 450 feet.
That document is driver-training guidance. It is not an engineering test dataset, and the 451-foot sum on our bar is arithmetic on the handbook's own rounded teaching values rather than a measured stop by any vehicle. We do not carry the example across to other speeds, to rain or to a heavier load, because the source does not support it. We also give no time value for the air-brake lag stage: the handbook's time passages and its distance passages do not line up precisely enough for that conversion.
The Federal Motor Carrier Safety Administration makes a related point for motorists in plainer terms, telling readers that large trucks and buses can need up to two football fields to stop. That is broad public-awareness guidance. It is not an exact conversion, not a limit that holds for every vehicle, and not a figure attached to any particular speed.
Distance before braking calculator
This answers one narrow question: at a steady speed, how much ground goes by during the delay that ends when the brake pedal is pressed?
Not total stopping distance. This result ends at brake-pedal application. It excludes air-brake lag and braking distance. It is not a safe-following-gap recommendation or a finding about anyone's alertness or fault.
At 55 mph, a delay of 2.5 seconds covers 201.7 feet before the brake pedal is pressed.
The two selectors switch on once this page's script has loaded. The table below needs no script at all.
Formula: feet = miles per hour × 5,280 ÷ 3,600 × seconds. Results are rounded to one decimal place. The conversion uses the ordinary definitions of a mile and an hour, which makes these figures our own arithmetic rather than measured stopping data. They are separate from the handbook's rounded teaching figures above and should not be read as the same kind of number.
The starting selections, 55 mph and 2.5 seconds, are an arbitrary illustration chosen to show the calculator working. They are not an average, not a standard and not a legal test. Real delays vary by person, by moment and by what there was to see.
| Steady speed | 1 second of delay | 2.5 seconds of delay |
|---|---|---|
| 35 mph | 51.3 ft | 128.3 ft |
| 45 mph | 66.0 ft | 165.0 ft |
| 55 mph | 80.7 ft | 201.7 ft |
| 65 mph | 95.3 ft | 238.3 ft |
| 75 mph | 110.0 ft | 275.0 ft |
The table and the selectors above call the same function, so the two always agree. The handbook example further up the page is fixed and does not move when the selections change.
Why weight on its own is not a stopping formula
Weight is the first thing people reach for, and by itself it produces no distance. Section 2.6.1 of the handbook makes a point that surprises most readers: an empty truck can have less traction at the tires than a loaded one, and can need a greater distance to stop. That does not flip into a rule that empty trucks always stop longer either. Traction depends on the surface, the tires, the weight sitting on each axle and the slope. Brake condition and adjustment change the answer again, and so does how soon the hazard came into view.
Our reference on semi truck dimensions and weight sets out the size and weight limits that do exist. None yields a stopping distance for a particular rig: traction, brake condition and the circumstances of the stop matter.
What Texas law asks of the operator
Texas’s following-distance rule does not prescribe one universal number of feet. It sets a duty based on conditions. Transportation Code § 545.062(a) requires an operator following another vehicle to keep an assured clear distance between them, considering the speed of the vehicles, the traffic and the conditions of the highway, so that the operator can safely stop without colliding with the vehicle ahead or veering into another vehicle, object or person on or near the highway.
Section 545.351 adds that an operator may not travel at a speed greater than is reasonable and prudent under the conditions then existing, and requires the operator to control the speed of the vehicle as necessary to avoid colliding with another person or vehicle who is on or entering the highway in compliance with law, with the duty of each person to use due care.
Two things follow. Sitting at the posted limit does not by itself settle whether a speed was appropriate, because the statute measures speed against conditions. And a rear-end impact does not by itself settle fault. Neither does the diagram on a crash report. What the two vehicles were doing, and what the records show, is what decides it. That is the argument at the heart of the rear-end truck accident cases we handle.
Speed and following distance are two of several causes we look at after a truck crash. Our guide to what causes truck crashes covers others, such as fatigue, distraction and cargo, and the evidence tied to each.
Three situations we are asked about
These are illustrations written to show our method. They are not cases we have handled and not findings about anyone.
Traffic slowed ahead of the truck
What we examine. The speed before impact and how it changed. How far back the slowing was visible, and from where. The lane, the grade, the curve and the sightline. Brake application timing from any system that recorded it. We examine whether the queue was foreseeable from the approach and how much room was available.
A vehicle moved into the space in front of the truck
What we examine. Where each vehicle sat before the movement, signal use and its timing, the size of the space, the closing speed, and video from before the movement rather than only the moment of contact. A movement into a gap is part of the analysis and does not by itself decide the case. A limited view is not a separate excuse either, which our guide to truck blind spots covers, and a corner has its own geometry, which our guide to wide turns traces.
A suspected brake or traction problem
What we examine. Inspection and repair records for that tractor and that trailer, the most recent inspection reports, brake adjustment measured at the scene, the tires, and what the surface was doing that day. Those records help us assess whether a mechanical problem contributed to the collision.
How Texas divides responsibility when both sides are blamed
Where Chapter 33 of the Texas Civil Practice and Remedies Code applies, an injured person's own share of responsibility is measured as a percentage. Section 33.001 bars recovery if that percentage is greater than 50 percent. If it is 50 percent or less, Section 33.012 directs that damages be reduced in proportion to the percentage assigned. An insurer's allegation is not a finding, and whether the chapter applies depends on the facts and the claims involved.
After a truck collision: evidence we preserve
- The room and the sightline. Preserve photographs already taken from a safe, lawful location: roadway, grade, curve, signs and sightlines. Do not enter traffic or stop on a highway to collect evidence. We can arrange a suitable scene investigation.
- The seconds before the brakes. Some engine control modules and telematics systems record speed and brake application around an event, and what gets recorded varies by truck, engine and system. No single field exists on every vehicle, and records may be overwritten. Our guide to truck black box data covers what these systems hold.
- The rig as it was that day. The tractor and trailer actually coupled together, the load and how it sat, the tires, brake condition and adjustment, and the inspection and repair file.
- The people. Passengers, following motorists and anyone who watched the approach rather than only the impact.
- Your own record. Photographs of both vehicles, the dates of your medical care, and a written note of what you saw and heard while it is fresh.
Retention varies by carrier, device and system, and no single window applies to every trucking company. We cannot promise that any particular record survives to any particular day, which is why a written preservation request should go out as early as possible. Our guide to spoliation letters explains what one asks for; it is a demand from us, not an order from a court.

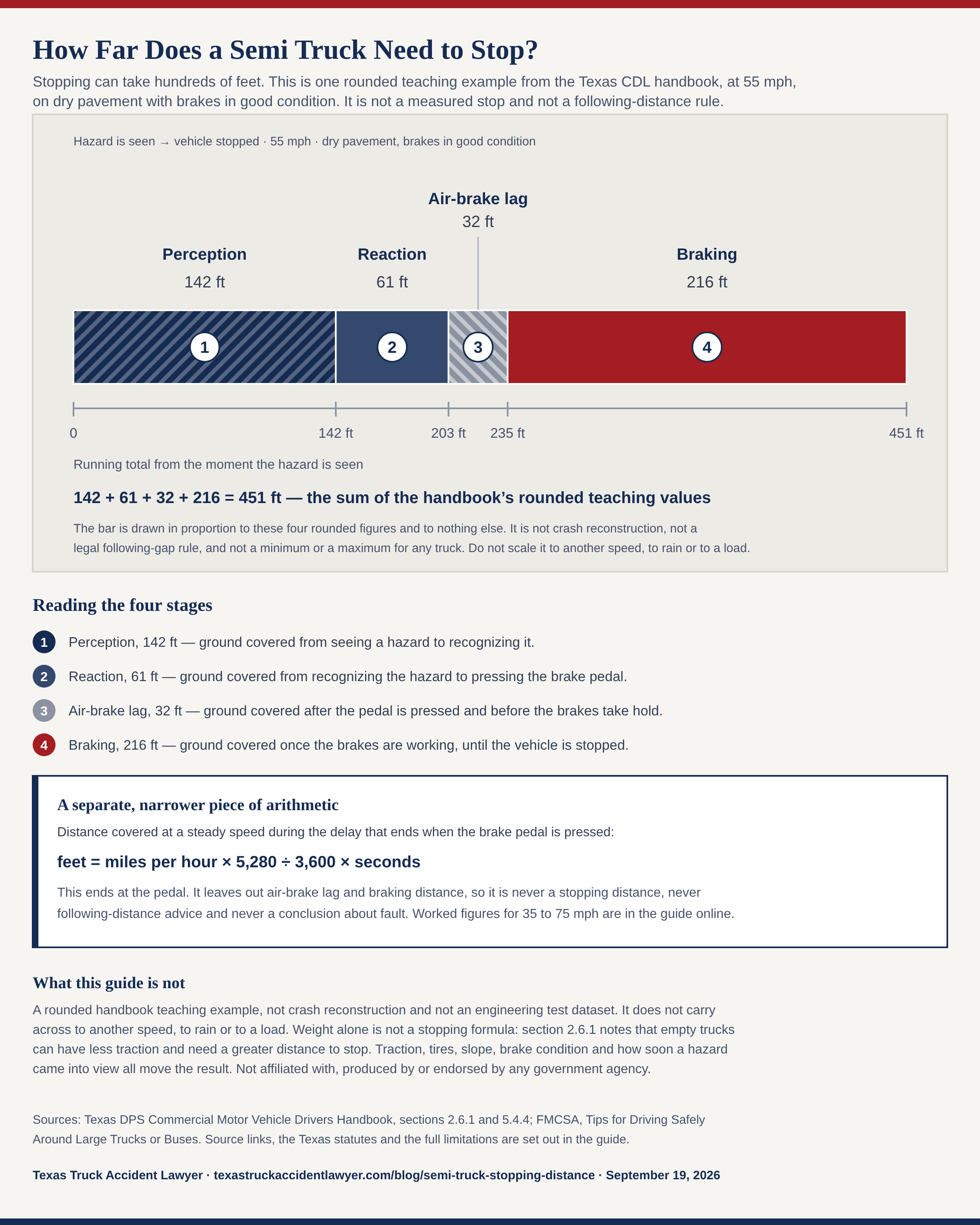

Get the guide
The four-stage guide is free to download, with no form to fill in. It carries the same figures and the same qualifiers as the version on this page.
- Stopping-distance stages guide (SVG) — scales to any size without blurring.
- Stopping-distance stages guide (PNG) — for slide decks and documents.
Suggested citation
Texas Truck Accident Lawyer, “How Far Does a Semi Truck Need to Stop?,” https://texastruckaccidentlawyer.com/blog/semi-truck-stopping-distance, September 19, 2026.
Select and copy the text above if the button is unavailable. Use this citation when referring readers to the guide. For publication permissions, contact us.
Questions we get asked
The documents behind these answers are listed under Sources at the end of this guide.
How far does a semi truck need to stop?
There is no single figure, and stopping can require hundreds of feet. The Texas CDL handbook teaches a 55 mph air-brake example that runs past 450 feet on dry pavement with brakes in good condition, built from rounded perception, reaction, air-brake lag and braking figures. That is training guidance. It is not a measurement of a particular truck, not a following-gap rule, and not an upper or lower bound for every crash.
How far does a truck at 65 mph travel before the brakes are applied?
At 65 miles per hour a vehicle covers about 95.3 feet each second, so a two-second delay before the pedal is pressed puts roughly 190.7 feet behind it. That figure is travel, not stopping. It ends at the pedal and excludes air-brake lag and braking distance. We publish no universal 65 mph stopping distance, because there is not one.
Does a loaded truck always take longer to stop than an empty one?
No. Section 2.6.1 of the Texas CDL handbook notes that empty trucks can have less traction and can need a greater distance to stop. Weight on its own is not a stopping formula. The surface, the tires, brake condition and adjustment, the slope and how soon the hazard came into view all move the result, so we publish no rain multiplier and no loaded-against-empty ranking.
Is the truck driver at fault if the truck could not stop in time?
Not automatically. Texas law asks whether the following distance and the speed were appropriate for the speeds of the vehicles, the traffic and the conditions of the highway at that moment. A rear-end impact does not settle that by itself, and neither does the diagram on a crash report. We examine the speed before impact, the room that was available, when the hazard could first be seen, the condition of the brakes and what each vehicle did.
What evidence shows how a truck was operated before the crash?
Some engine control modules and telematics systems record speed and brake application around an event, and what gets recorded varies by truck, engine and system. No single field exists on every vehicle, and records may be overwritten. Inspection and repair files, tires, brake adjustment at the scene, video and people who watched the approach fill out the rest. A written preservation request should go out early; it is a demand from us, not an order from a court.
Hit by a truck that could not stop in time?
The useful next step is finding out what the truck, the roadway and the carrier's records can still show. Call (832) 250-4888 or request a free case review. Tell us what the traffic ahead of you was doing and what you saw in your mirror, and we will tell you what we would go looking for.
Sources
- Texas DPS, Commercial Motor Vehicle Drivers Handbook, sections 2.6.1 and 5.4.4
- FMCSA, Tips for Driving Safely Around Large Trucks or Buses, section 2
- Texas Transportation Code § 545.062, Following Distance
- Texas Transportation Code § 545.351, Maximum Speed Requirement
- Texas Civil Practice and Remedies Code § 33.001, Proportionate Responsibility
- Texas Civil Practice and Remedies Code § 33.012, Amount of Recovery
